介绍

Layout 提供了van-row和van-col两个组件来进行行列布局

引入

import Vue from 'vue';
import { Col, Row } from 'vant';

Vue.use(Col);
Vue.use(Row);

代码演示

基本用法

Layout 组件提供了24列栅格，通过在Col上添加span属性设置列所占的宽度百分比此外，添加offset属性可以设置列的偏移宽度，计算方式与 span 相同

<van-row>
  <van-col span="8">span: 8</van-col>
  <van-col span="8">span: 8</van-col>
  <van-col span="8">span: 8</van-col>
</van-row>

<van-row>
  <van-col span="4">span: 4</van-col>
  <van-col span="10" offset="4">offset: 4, span: 10</van-col>
</van-row>

<van-row>
  <van-col offset="12" span="12">offset: 12, span: 12</van-col>
</van-row>

设置列元素间距

通过gutter属性可以设置列元素之间的间距，默认间距为 0

<van-row gutter="20">
  <van-col span="8">span: 8</van-col>
  <van-col span="8">span: 8</van-col>
  <van-col span="8">span: 8</van-col>
</van-row>

Flex 布局

将 type 属性设置为 flex 可以启用 flex 布局，便于进行灵活的对齐

<!-- 左对齐 -->
<van-row type="flex">
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
</van-row>

<!-- 居中 -->
<van-row type="flex" justify="center">
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
</van-row>

<!-- 右对齐 -->
<van-row type="flex" justify="end">
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
</van-row>

<!-- 两端对齐 -->
<van-row type="flex" justify="space-between">
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
</van-row>

<!-- 每个元素的两侧间隔相等 -->
<van-row type="flex" justify="space-around">
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
  <van-col span="6">span: 6</van-col>
</van-row>

API

Row Props

参数说明类型默认值
type布局方式，可选值为flexstring-
gutter列元素之间的间距（单位为px）number | string-
tag自定义元素标签stringdiv
justifyFlex 主轴对齐方式，可选值为 end center
space-around space-between		stringstart
alignFlex 交叉轴对齐方式，可选值为 center bottomstringtop

Col Props

参数说明类型默认值
span列元素宽度number | string-
offset列元素偏移距离number | string-
tag自定义元素标签stringdiv

Row Events

事件名说明回调参数
click点击时触发event: Event

Col Events

事件名说明回调参数
click点击时触发event: Event

实例演示

代码：

<body ontouchstart="">
    <div>
        <div class="demo-nav" style="">
            <div class="demo-nav__title">Col</div>
            <svg viewBox="0 0 1000 1000" class="demo-nav__back">
                <path fill="#969799" fill-rule="evenodd" d="M296.114 508.035c-3.22-13.597.473-28.499 11.079-39.105l333.912-333.912c16.271-16.272 42.653-16.272 58.925 0s16.272 42.654 0 58.926L395.504 498.47l304.574 304.574c16.272 16.272 16.272 42.654 0 58.926s-42.654 16.272-58.926 0L307.241 528.058a41.472 41.472 0 0 1-11.127-20.023z"></path>
            </svg>
        </div>
        <section class="van-doc-demo-section demo-col">
            <div class="van-doc-demo-block">
                <h2 class="van-doc-demo-block__title">基础用法</h2>
                <div class="van-row"><div class="van-col van-col--8">span: 8</div>
                <div class="van-col van-col--8">span: 8</div>
                <div class="van-col van-col--8">span: 8</div>
            </div>
            <div class="van-row">
                <div class="van-col van-col--4">span: 4</div>
                <div class="van-col van-col--10 van-col--offset-4"> offset: 4, span: 10</div>
            </div>
            <div class="van-row">
                <div class="van-col van-col--12 van-col--offset-12">offset: 12, span: 12</div>
            </div>
            <div class="van-doc-demo-block">
                <h2 class="van-doc-demo-block__title">在列元素之间增加间距</h2>
                <div class="van-row">
                    <div class="van-col van-col--8" style="padding-right: 13.3333px;">span: 8</div>
                    <div class="van-col van-col--8" style="padding-left: 6.66667px; padding-right: 6.66667px;">span: 8</div>
                    <div class="van-col van-col--8" style="padding-left: 13.3333px; padding-right: 1.77636e-15px;">span: 8</div>
                </div>
            </div>
            <div class="van-doc-demo-block">
                <h2 class="van-doc-demo-block__title">Flex 布局</h2>
                <div class="van-row van-row--flex">
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                </div>
                <div class="van-row van-row--flex van-row--justify-center">
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                </div>
                <div class="van-row van-row--flex van-row--justify-end">
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                </div>
                <div class="van-row van-row--flex van-row--justify-space-between">
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                </div>
                <div class="van-row van-row--flex van-row--justify-space-around">
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                    <div class="van-col van-col--6">span: 6</div>
                </div>
            </div>
        </section>
    </div>
<script src="https://b.yzcdn.cn/vant/async_chunks.a839cbb5.js" rel="external nofollow" ></script><script src="https://b.yzcdn.cn/vant/site-mobile.ea70a230.js" rel="external nofollow" ></script></body>

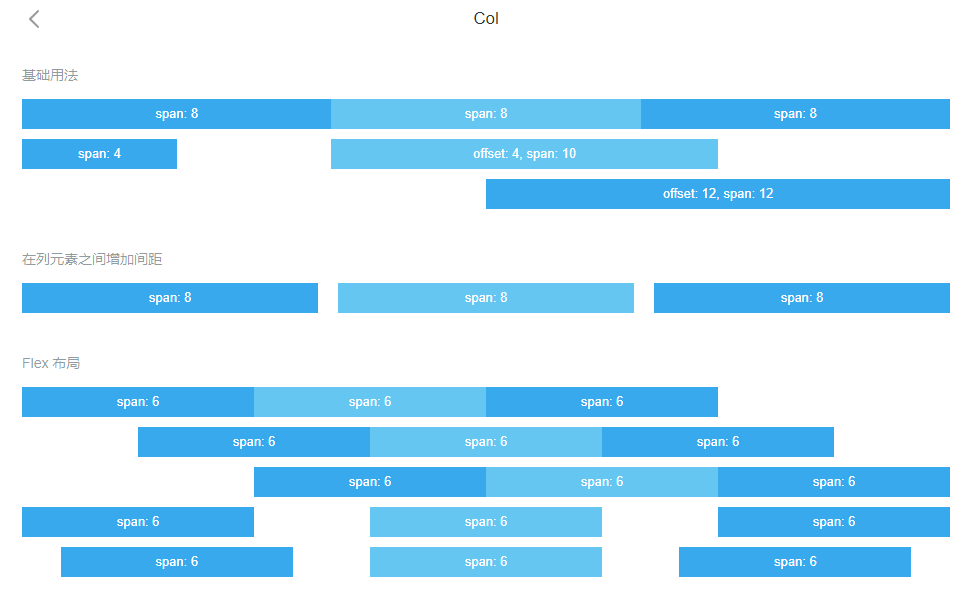

运行效果：

Vant Layout 布局


实例演示
